產品介紹

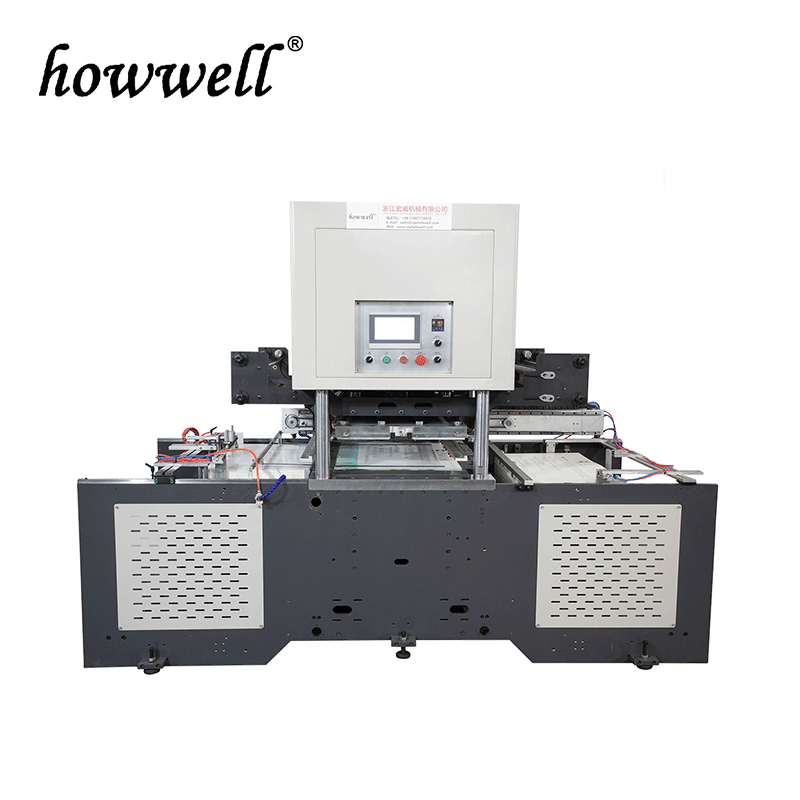

浙江宏威機械有限公司的LY系列全自動液壓燙金設備可以高效完成產品燙金、凹凸壓印，同時保證最高的精度和產品質量。LY系列全自動液壓燙金設備具有豐富的硬件配置，可以適應多種產品的燙金要求。

Zhejiang Hongwei Machinery Co., Ltd.'s LY series of fully automatic hydraulic hot stamping equipment can efficiently complete product hot stamping and embossing, while ensuring the highest precision and product quality. The LY series of fully automatic hydraulic hot stamping equipment has rich hardware configurations and can adapt to the hot stamping requirements of a variety of products.

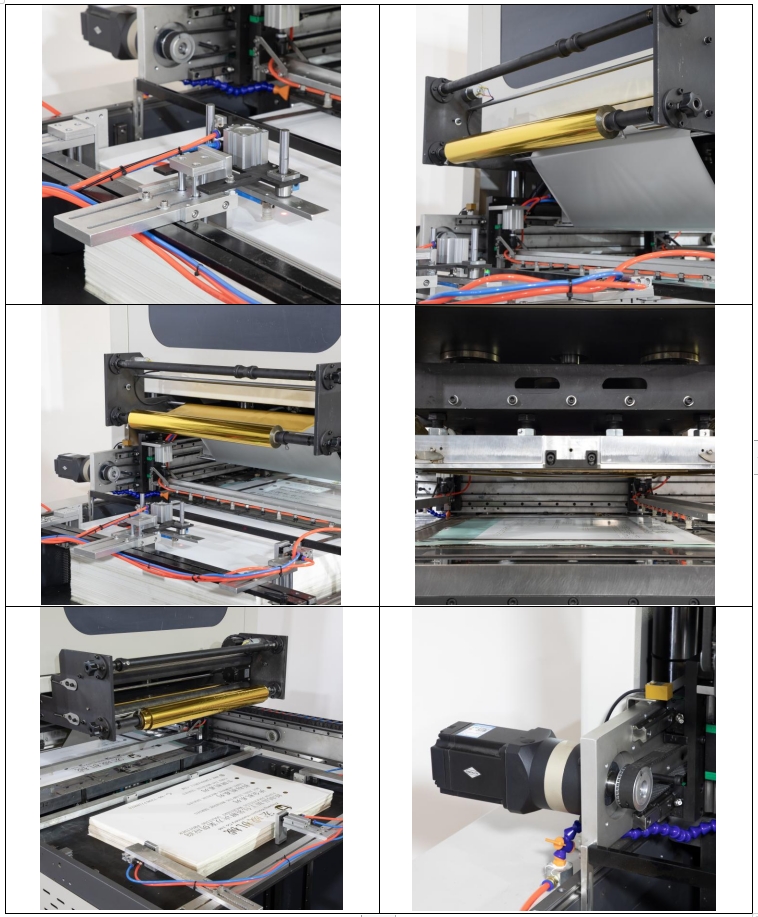

（1）整機全部采用Q235碳素鋼，機身墻板經特殊工藝處理，強度高、永不變形，保證機身墻板安全。

The entire machine is made of Q235 carbon steel, and the fuselage wall panels are treated with special processes to ensure high strength and never deform, ensuring the safety of the fuselage wall panels.

（2）采用臺灣液壓元件，保證機器動作準確，主機壓力有過載保護裝置，同步帶有斷裂保護裝置受到外力沖擊時會自動停機，減少對機身和吸排精度的損壞，避免故障的發生。

Taiwan hydraulic components are used to ensure accurate machine movement. The host pressure has an overload protection device, and the synchronization is equipped with a fracture protection device.

It will automatically stop when there is an external impact, reducing damage to the fuselage and suction and discharge accuracy, and avoiding the occurrence of malfunctions.

（3）主機使用進口原裝軸承。

The main engine uses imported original bearings.

（4）整機部分使用、日本歐姆龍等進口電器原件。

Part of the whole machine uses original electrical appliances imported from Japan Omron and others.

（5）燙金精度達±0.1mm,機器最高速度達1800張/小時。

The hot stamping accuracy reaches ±0.1mm, and the maximum speed of the machine reaches 1800 sheets/hour.

（6）配置杰享壓力調節自動控制裝置，保證在調節燙金壓力時快速準確。

Equipped with Jiexiang pressure adjustment automatic control device to ensure fast and accurate adjustment of hot stamping pressure.

（7）中英文觸摸屏操作界面。

Chinese and English touch screen operation interface.

（8）采用臺灣亞德客氣動元件，保障每一個氣動動作準確。

Chinese and English touch screen operation interface.

（9）主PLC采用信捷電器，保證機器運轉平穩。

Chinese and English touch screen operation interface.
