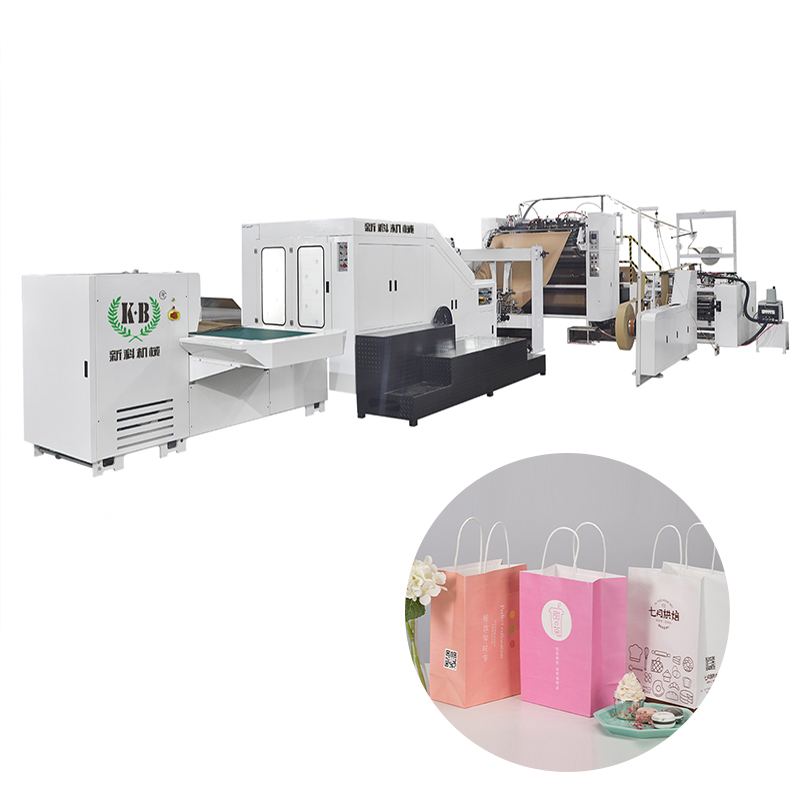

    Paper Shopping Bag Making Machine

    Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. Consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue.

    產品詳情

    Product Description:

    Square bottom paper bag machine, used to produce hand - held paper bags.This machine is especially suitable for mass production of shopping bags in food and clothing industries.The machine by hand holding machine will roll of rope and paper roll system arm in arm, arm in arm through the transmission system to put the unit will be primary or printed roll paper twine again a preliminary point break, patch glue, automatic paste hand wan, again by the host with a hand holding the paper to the edge glue, into the bottom of the cone, cutting, creasing, glue, bag forming and piped out of the bag,The whole process is synchronized at one time.The machine adopts the high speed motion controller (CPU) imported from Siemens, Germany, through the high speed bus to control the operation of the servo, to ensure the stable movement, smooth movement curve, is recommended by the majority of printing and packaging manufacturers fully automatic portable square paper bag equipment.



    Product Parameter:

    Model

    HWFD220T(全)

    HWFD280T(全)

    HWFD330T(全)

    HWFD450T(全)

    HWFD450BT

    HWFD540T(全)

    袋筒長度Bag Tube Length(mm)

    190-270

    270-430

    270-430

    285-430

    420-660

    420-660

    紙袋長度Bag Length(mm)

    150-250

    225-370

    225-370

    225-370

    320-560

    320-580

    紙袋寬度Bag Width(mm)

    150-220

    220-280

    220-330

    250-450

    200-450

    250-540

    袋底寬度Bottom Width(mm)

    50-120

    60-160

    60-180

    80-220

    80-220

    120-260

    搭邊寬度Side Edge Width(mm)

    20-30

    25-30

    25-30

    30

    30

    30-40

    紙張克重Paper Thickness(g/㎡

    50-130

    60-160

    60-160

    80-160

    80-160

    90-160

    放卷寬度Paper Roll Width(mm)

    380-770

    485-910

    590-1050

    690-1330

    650-1330

    770-1640

    制袋速度Bag Making Speed(pcs/min

    30-180

    30-160

    30-120

    30-100

    30-100

    30-80

    手把貼片長度Patch Length(mm)

    95

    114.3

    152.4

    190.8

    190.8

    190.8

    紙繩間距Handle Distance(mm)

    45

    50

    80

    95

    95

    95

    手把紙繩直徑Rope Diameter(mm)

    ?3-5

    ?3-5

    ?3-5

    ?4-6

    ?4-6

    ?4-6

    總功率Power Supply(kw

    25.5

    25.5

    25.5

    25.5

    30

    30

    機器重量Machine Weight(kgs

    11000

    12000

    13500

    16000

    17000

    18000

    機器尺寸Machine Dimension(mm)

    10800x5500x3050

    11500x5600x3100

    12600X5880X3150

    12800X6250X3350

    13500X5300X2550

    14000X6500X3250


    Product Details:

    After-Sales Service

    OUR SERVICE

    ● Our company offers a twelve-month warranty. ● Provide trial video before shipment. ● 24 hours online customer service. ● Provide engineers to go abroad to the site debugging and training

    services (customers pay fees, except during the epidemic period).


    OUR ADVANTAGE

    ● Our company is engaged in direct foreign trade for more than 10 years, with rich experience and high quality reputation.● All the machines have passed CE and ISO certification and meet export standards.● As a professional paper bag manufacturer, we speak directly to the engineers and get to know the machines better.● As a factory, we can offer better prices.
